Joystick : J3L Series - Includes wire leads. One potentiometer & up to 3 switches. 2,000,000 cycle pot life.
|

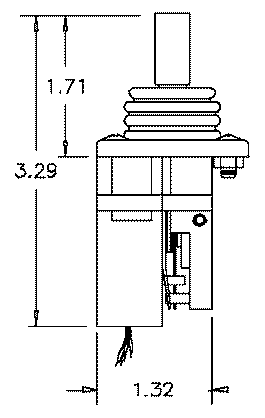

Single axis joystick. Handle height approximately 1.71 inches above the panel. 40 to 50 degrees of handle travel. |
|
|
|
|
|
J3L-IA10-SB |
J3L-IF10-M |
J3L-IR10-M |
(30JLK-XI10R1G)
One 10K ohm potentiometer. Usually in stock. |
(30JLK-XI-10R1HP
Flat handle without dust proof boot. |
(30JLK-XI-10R1RP)
Flat handle without dust proof boot. |
|
|
|
J3L-IA10-S |
J3L-IF11-SB |
J3L-IR12-SB |
J3L-IC11-SB |
( 30JJK-XI-10R1) |
(30JLK-XI11R1G-H)
With one center detect switch. |
With directional switches . One on either side of the handle center position. |
(S30JLK-XI11R1G)
With push button switch on top of handle. |
Too many choices? For more information : Call 610-359-1002 |
|
