Potentiometer : Multiturn oil filled waterproof . - Submersible in water to 15 PSI.
|
|
|
|
MO20B -1 1/4" DIA.
(OF20HD-10)
|
MOH20B -1 1/4" DIA.
(OF20HHP)
|

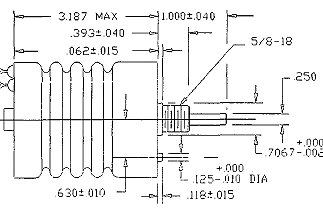

MO46B
(OF46HD-10)
|
- Wirewound element- 10 turn
- Oil filled -Glass header terminals
- Standard resistance : 100 to 100K
- Power rating : .75 watt
- Life expectancy : 1,000,000 turns
- MO20B pdf
|
- Hybrid element- 5, & 10 turns
- Resistance range:1K to 100K
- Power Rating: 2 Watts
- Servo Mount#MOH20S
|
- Wirewound element- 10 turn
- Glass header terminals
- Standard resistance : .5 to 300K
- Power rating : 5 watts
- Life expectancy : 2,000,000 turns
- MO46B pdf
|
Options: Special shafts, taps, servo mount , special linearity, special resistance values. |
|
|
|
|
