Potentiometer :  Linear motion : Conductive plastic element . Conductive plastic for long life.

Too many choices? Through our experience we have designed pots used in the harsh environment of fiber board manufacturing, flight simulators and laboratory shake tables. We can help you make an informed potentiometer decision. Conductive plastic elements feature long life and essentially infinite resolution. Go to wirewound element linear potentiometers. Go to waterproof linear potentiometers
lcp8linear potentiometer
lcp12linear potentiometer
lcp12ylinear potentiometer
lcp18uclinear potentiometer

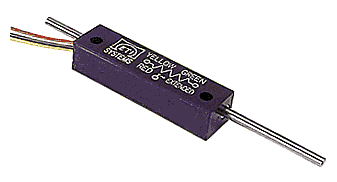

LCP8 Linear Potentiometer
(8FLP)

LCP12 Linear Potentiometer
(13FLP)

LCP12Y Linear Potentiometer

LCP18UC Linear Potentiometer
(18FLP)

  • 10 & 12 mm stroke lengths - wire leads.
  • Shaft styles -Plain, threaded, chamfered , internal spring return. Standard resistance : 1K,2K,5K,10K,20K,50K.
  • 7/16" or 1/2" stroke length-
  • Power rating 0.2 watts.
  • Life : 20,000,000 cycles.
  • 1/4" W x 5/16" H x 1.259" L
  • LCP8 pdf
  • 12, 25, 50 & 100 mm stroke lengths
  • Shaft styles -Plain, threaded, chamfered , external spring return.
  • Standard resistance : 500 to 20K ohms depending on stroke.
  • 1/2" or 4" stroke length-
  • Power rating : .2 to 1.2 watts
  • Life : 20,000,000 cycles
  • LCP12 pdf
  • 12, 25, 50 & 100 mm stroke length
  • Shaft - 1.25" dia. spherical bearings both ends
  • Standard resistance : 500 to 20K ohms depending on stroke.
  • Power rating : .2 to 1.2 watts.
  • LCP12Y
  • 25, 50, 75, 100 & 150 mm strokes lengths
  • Amphenol connector.
  • Shaft - swivel joint end
  • Standard resistance : 500 to 20K ohms depending on stroke
  • Power rating : .3 to 1.5 watts.
  • Life : 20,000,000 cycles
  • LCP18UC
Options: Sealed body , "O" ring seal. Spring return, Center tap, Sealed housing.
Plcpl linear potentiometer
lcp30linear potentiometer
lcp20linear potentiometer
lp-xxxflinear potentiometer

LCPL - Open Frame
(CFL200)

LCP30 Linear Potentiometer
(30FLP)

LCP20 Linear Potentiometer

LP-xxxF-15 Linear Potentiometer
WATERPROOF

  • 200, 300, 400, 500 & 1000 mm stroke lengths
  • No shaft, movable slider & contact.
  • Standard resistance range : 2K to 500K ohms depending on stroke.
  • Power rating : 2 to 6 watts.
  • Options: Hybrid element.
  • LCPL pdf
  • 100, 200, 300, 400, 500, 750 & 1000 mm stroke lengths movable mounting tabs with connector.
  • Standard resistance range : 500 to 20K ohms
  • Power rating : 1.25 to 10.0 watts.
  • Life : 10,000,000 cycles.
  • LCP30  pdf
  • 15,30,50 &100 mm stroke lengths
  • Standard resistance range : 500 to 20K ohms depending on stroke
  • Power rating : .3 to 1.25 watts
  • Life : 20,000,000 cycles
  • Designed for Harsh Environments
  • Electrical Strokes-100,150,200 & 250 mm
  • Resistance range : 1K, 2K,5K ,10K & 20K ohms.
  • Power rating : 2.5 to 4 watts
  • LP-xxxF-15 pdf
p1991linear potentiometer
p2080linear potentiometer
lpxxxfzlinear potentiometer

P1991 Linear Potentiometer

P2080 Linear Potentiometer

LP-xxxFZ Linear Potentiometer - WATERPROOF

  • 1" to 15" stroke lengths
  • MS connector
  • Spherical bearings both ends
  • Standard resistance : 500 to 10K
  • Power rating : .5 watts per inch
  • Life : 50,000,000 cycles
  • P1991 pdf
  • 1" to 12" stroke lengths
  • Spherical bearings both ends
  • Standard resistance : 250 to 10K
  • Power rating : .5 watts per inch
  • Life : 50,000,000 cycles
  • P2080 pdf
  • 50 to 400 mm stroke
  • Designed for Harsh Outdoor Applications
  • xxx-Electrical Strokes-50,100,150,200,250 ,300 & 400 mm
  • Sealed construction, aluminum housing, IP64
  • 12 mm diameter shaft, M10 P1.15
  • Resistance range : 1K, 2K,5K ,10K & 20K
  • Power rating : 1.5 to 4.5 watts
  • LP-xxxFZ pdf
